产品名称 Mark-10 R03 Tension and Compression Force Sensor
产品货号
产品价格 现货询价，电话：010-67529703
产品规格
产品品牌 Abq Industrial
产品概述
产品详情 Description
Price:
Mark-10 R03 Tension and Compression Force Sensor
8 Ranges up to 100 lbs
Well suited for inline tests

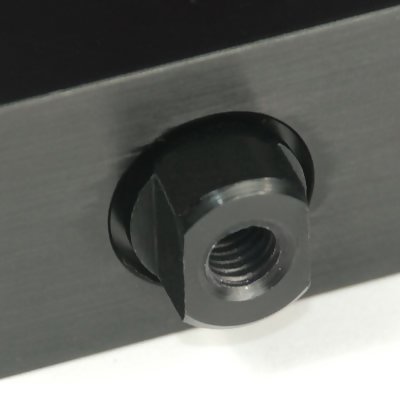

Force measurement sensor for tensile and compressive loads in a wide variety of applications, available in capacities from 0.25 lb to 100 lb. Thread on two sides can accept a variety of hooks and implements, making this sensor particularly well suited for inline tests.

line
Features
line

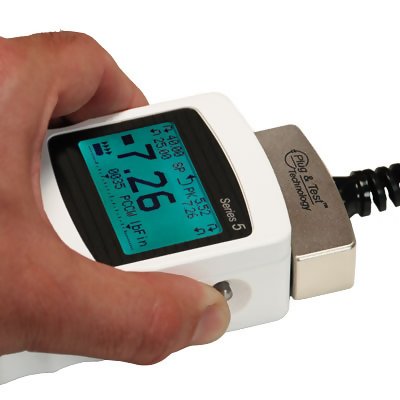

  • Compatible with the 5i and 3i digital indicators
  • Rugged aluminum housing
  • NIST-traceable certificate of calibration included

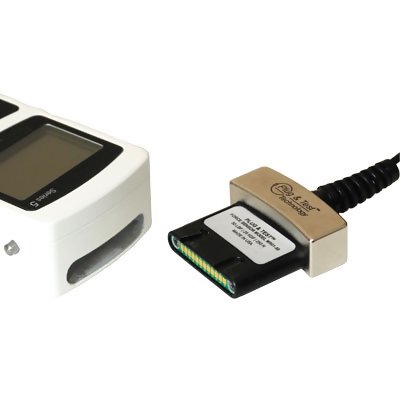

  • Unique Plug & TestTM connector holds all calibration and configuration data
  • Measures tensile and compressive forces
  • Warranty: 3 years

line

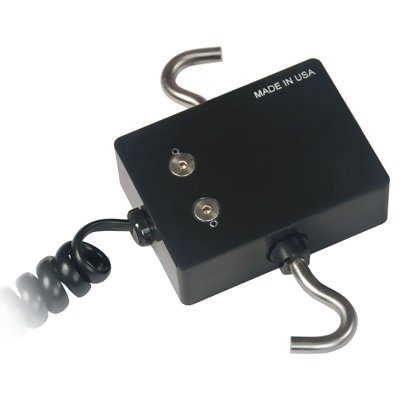

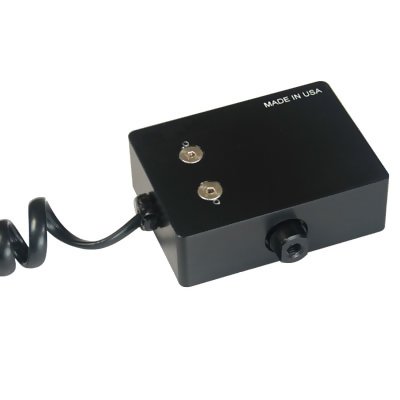

Photo Gallery
line

ABQ ABQ ABQ ABQ ABQ ABQ

line
Force Ranges
line

ModellbfozfgfkgfN
MR03-250.25
0.0001		4
0.002		100
0.05		-1
0.0005
MR03-050.5
0.0002		8
0.005		250
0.1		-2.5
0.001
MR03-22
0.001		32
0.02		1000
0.5		1
0.0005		10
0.005
MR03-55
0.002		80
0.05		2500
1		2.5
0.001		25
0.01
MR03-1010
0.005		160
0.1		5000
2		5
0.002		50
0.02
MR03-2020
0.01		320
0.2		10000
5		10
0.005		100
0.05
MR03-5050
0.02		800
0.5		25000
10		25
0.01		250
0.1
MR03-100100
0.05		1600
1		50000
20		50
0.02		500
0.2

N/A = Series 3i is unable to display these units

line
Specifications
line

Accuracy± 0.15% of full scale ±1 digit + indicator
Weight0.4 lbs (0.2 kg)
Warranty3 Years


line
Related Products
line

Series-3I
Advanced Force/Torque Indicator

  • Interchangeable force and torque sensors through Plug & Test™technology
  • USB data output
related

line

Series-5I
Advanced Force/Toruqe Indicator

  • Interchangeable force and torque sensors through Plug & Test™ technology
  • 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
related

line
Downloads
line

ABQMark-10 R03 Tension and Compression Force Sensor - Data Sheet
