世联博研公司现货供应Abq Industrial品牌订货号为的Mark-10 R04 Miniature S-Beam Force Sensor产品

Price:

Miniature S-Beam Force Sensor

8 Ranges up to 100 lbs

Extremely compact force measurement sensor for tensile and compressive loads in applications with limited space. The Mark-10 R04 Miniature S-Beam Force Sensor is available in capacities from 0.25 lb to 100 lb (1 N to 500 N). Every capacity has the same miniature dimensions: 0.85" x 0.30" x 0.75" (21.6 mm x 7.6 mm x 19.1 mm). The sensors feature outstanding mechanical overload protection of up to 1,000% percent of full scale for most applications and threaded holes on two sides for the mounting of attachments or implements

line
Features
line

Compatible with the 5i and 3i digital indicators

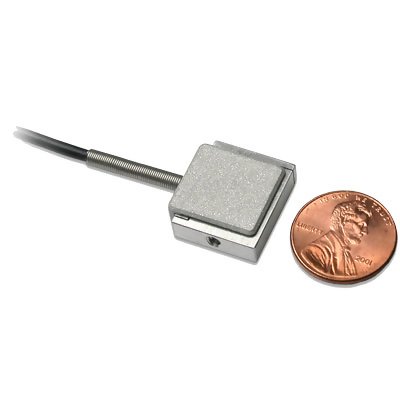

Ultra-compact size
NIST-traceable certificate of calibration included

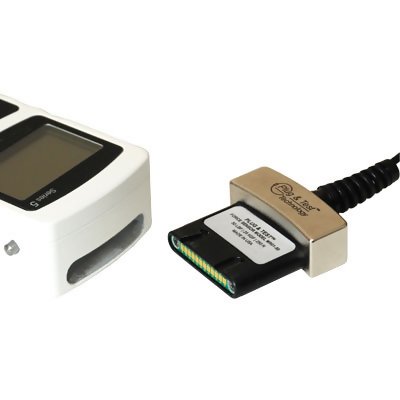

Unique Plug & TestTM connector holds all calibration and configuration data

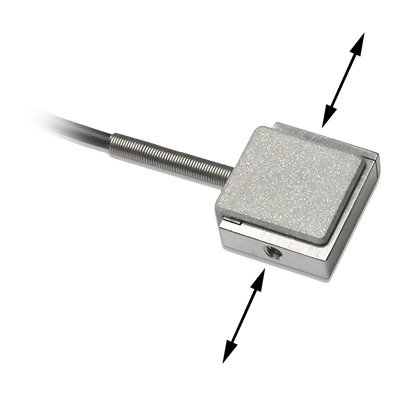

Measures tensile and compressive forces
Warranty: 3 years

line
Photo Gallery
line

line
Force Ranges
line

Model	lbf	ozf	gf	kgf	N
MR04-25	0.25 0.0001	4 0.002	100 0.05	-	1 0.0005
MR04-05	0.5 0.0002	8 0.005	250 0.1	-	2.5 0.001
MR04-2	2 0.001	32 0.02	1000 0.5	1 0.0005	10 0.005
MR04-5	5 0.002	80 0.05	2500 1	2.5 0.001	25 0.01
MR04-10	10 0.005	160 0.1	5000 2	5 0.002	50 0.02
MR04-20	20 0.01	320 0.2	10000 5	10 0.005	100 0.05
MR04-50	50 0.02	800 0.5	25000 10	25 0.01	250 0.1
MR04-100	100 0.05	1600 1	50000 20	50 0.02	500 0.2

N/A = Series 3i is unable to display these units

line
Specifications
line

Accuracy	± 0.2% of full scale ±1 digit + indicator
Weight	0.015 lbs (0.007 kg)
Warranty	3 Years

line
Related Products
line

Series-3I
Advanced Force/Torque Indicator

Interchangeable force and torque sensors through Plug & Test™technology
USB data output

line

Series-5I
Advanced Force/Toruqe Indicator

Interchangeable force and torque sensors through Plug & Test™ technology
1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs

line
Downloads
line

Mark-10 R04 Miniature S-Beam Force Sensor - Data Sheet
