Mark-10 R05 Push/Pull Sensor fully enclosed smart sensors are designed for pull / push measurements. Useful in ergonomics testing, workplace safety testing, and general lifting or tension / compression requirements. Threaded holes are supplied to accommodate various mounting configurations and attachments. For up to 500 lbF (2,500 N).

Features

• Compatible with the 5i and 3i digital indicators
• Rugged aluminum housing
• NIST-traceable certificate of calibration included
• Unique Plug & TestTM connector holds all calibration and configuration data
• Measures tensile and compressive forces
• Warranty: 3 years

Photo Gallery

Series R05 sensor contains a rugged aluminum housing and ergonomic handles

Force Ranges

N/A = Gauge is unable to display these units des to accommodate attachments and mounting configurations.

Specifications

Related Products

Series-3I Advanced Force/Torque Indicator Interchangeable force and torque sensors through Plug & Test™technology USB data output

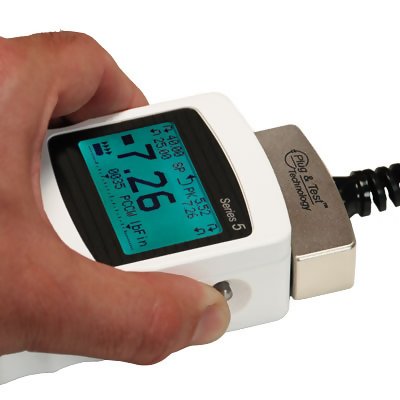

Series-5I Advanced Force/Toruqe Indicator Interchangeable force and torque sensors through Plug & Test™ technology 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
