世联博研公司现货供应Abq Industrial品牌订货号为的Mark-10 R51 Universal Torque Sensor产品

Price:

General torque testing

Interchangeable attachments

Capacities from 10 ozFin to 100 lbFin (7 to 1150 Ncm)

Bi-directional

A great solution for general bi-directional torque testing applications requiring different sample sizes. Three interchangeable chuck capacities and bit holder are available. The R51 has superb overload protection and is available in capacities from 10 ozin to 100 lbin.

line
Features
line

Compatible with the 5i and 3i digital indicators
Outstanding overload protection
NIST-traceable certificate of calibration included
Unique Plug & TestTM connector holds all calibration and configuration data
Interchangeable chucks (order separately)

line
Photo Gallery
line

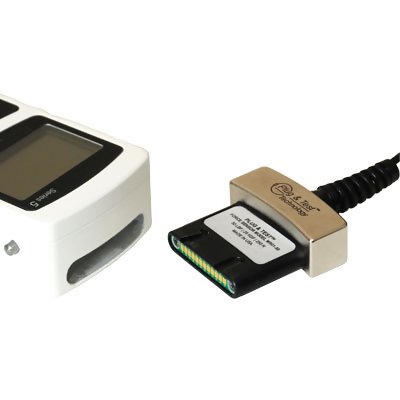

The Plug & TestTM connector locks into the receptacle in the indicator when fully inserted. Dual buttons on the indicator housing release the connector for easy removal. Gold plated spring contacts ensure long lasting and reliable connection

line
Force Ranges
line

Model	oz Fin	lb Fin	lb Fft	gF cm	kgF mm	N mm	N cm
MR51-10Z	10 0.005	-	-	700 0.5	7 0.005	70 0.05	7 0.005
MR51-20Z	20 0.01	-	-	1400 1	14 0.01	140 0.1	14 0.01
MR51-50Z	50 0.02	-	-	3600 2	36 0.02	350 0.2	35 0.02
MR51-12	-	12 0.005	1 0.0005	-	140 0.1	-	135 0.1
MR51-50	-	50 0.02	4 0.002	-	580 0.5	-	570 0.5
MR51-100	-	100 0.05	8 0.005	-	1150 0.5	-	1150 0.5

N/A = Gauge is unable to display these units.

line
Specifications
line

Accuracy	± 0.20% of full scale ±1 digit + indicator
Weight	1.4 lbs (0.6 kg)
Warranty	3 Years

line
Related Products
line

Series-3I
Advanced Force/Torque Indicator

Interchangeable force and torque sensors through Plug & Test™technology
USB data output

line

Series-5I
Advanced Force/Toruqe Indicator

Interchangeable force and torque sensors through Plug & Test™ technology
1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs

line
Downloads
line

Mark-10 R51 Universal Torque Sensor - Data Sheet
