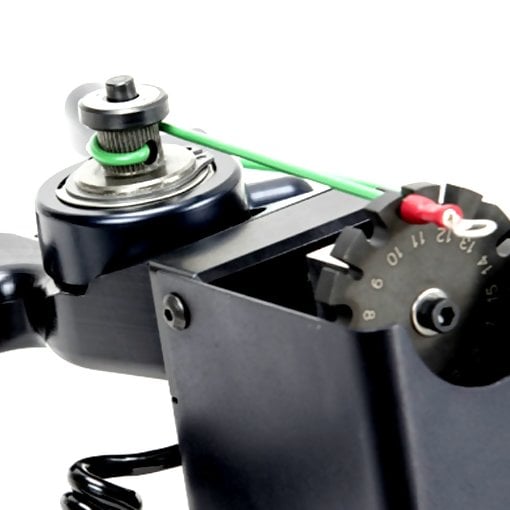

The Mark-10 MR06-200 Wire Crimp Pull Sensor Tester is a hand-operated solution for measuring wire crimp pull-off forces. The ergonomic handles and convenient tensioning mechanism make field measurements a breeze for applications up to 200 lbF (1,000 N). Squeeze the handles together to increase tension on the sample until a break occurs. The peak force is recorded by a Series 7i, Series 5i or Series 3i. A rotating turret with slots of multiple sizes accommodates a wide range of wire diameters, up to 0.25 in. (6.4 mm), 20 - 3 AWG.
Photo Gallery
Features
- Includes NIST-traceable certificate of calibration

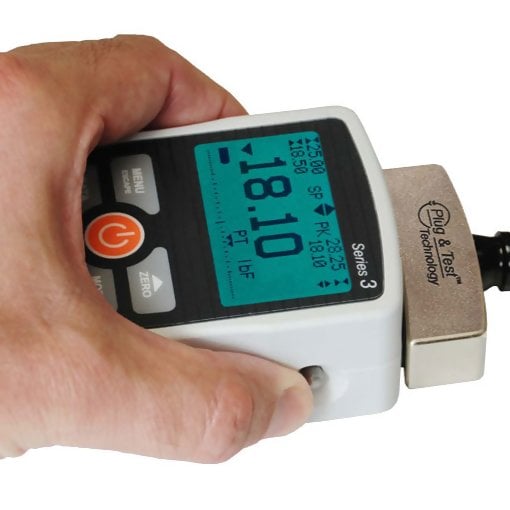

- Compatible with the 7i, 5i and 3i digital indicators
- Test wire diameters from 20 - 3 AWG

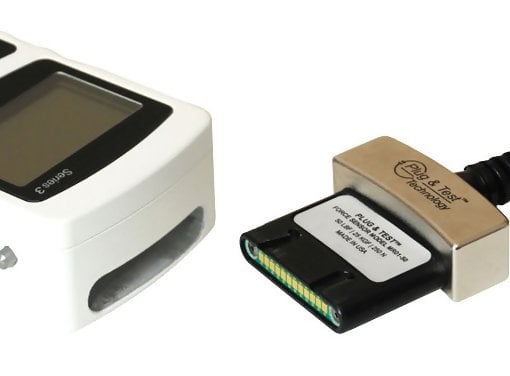

- Unique Plug & TestTM connector holds all calibration and configuration data
- Ergonomic handles and convenient tensioning mechanism
- Measures pull forces
- 3 Year Warranty
Ranges
| Model | lbf | ozf | kgf | N | kN |
|---|
| MR06-200 | 200
0.1 | 3200
2.0 | 100
0.05 | 1000
0.5 | 1
0.0005 |
Specifications
| Accuracy | ±0.5% of full scale + indicator | | Weight | 2.5 lb [1.2 kg] | | Slot dimensions (in [mm]) | 0.03 [0.8], 0.05 [1.3], 0.06 [1.5], 0.08 [2.0], 0.09 [2.3], 0.11 [2.8], 0.13 [3.3], 0.14 [3.6], 0.16 [4.1], 0.17 [4.3], 0.19 [4.8], 0.20 [5.1], 0.22 [5.6], 0.24 [6.1], 0.25 [6.4] | | Slot Size in AWG | 20 - 3 AWG | | Warranty | 3 years |
Dimensions
