Price:
Wireless connection to Hand-Held Indicator or direction connection to PC software
Wireless range of 700 meter/2300 ft.
Housing protection of Nema6/IP67
Optional Center of Gravity Software
Capacities up to 500 te (1,110,000 Lbs)
Maintenance costs are all but eliminated due to the absence of cables and connectors, and the products added flexibility opens the door to world of new possibilities. The unique design utilizing double o’ring seals on the loadcell ensures these impressive loadcells are built for use in the harshest industrial environments. All Straightpoint wireless compression load cells benefit from our advanced microprocessor based electronics and un-rivalled resolution and accuracy. Data transmission is handled by the Straightpoint Wireless system, providing high integrity, error free transmission of data via the latest in IEEE 802.15.4 (2.4 GHz) technology. Our wireless technology allows antennae free data transmission to 700 metres or 2300 feet and can be connected to the latest Internet of Things (IOT) technology. The Straightpoint Wireless Compression loadcells require connection to our range of handheld controllers, our Centre of Gravity System or any of our range of datalogging software packages.Straightpoint compression loadcells are used in a broad range of industries including steel fabrication, ship building, structural weighing, shipping, and general transportation sectors, allowing for the calculation of total mass and the centre of gravity on loads up to and exceeding 15,000t for ISO 19901 testing. It is not until you add the powerful array of wireless accessories that the full potential of this product is realized. These accessories, which include a wireless signal booster and several user friendly windows based datalogging software packages, provide a level of flexibility not previously known in the load monitoring industry.

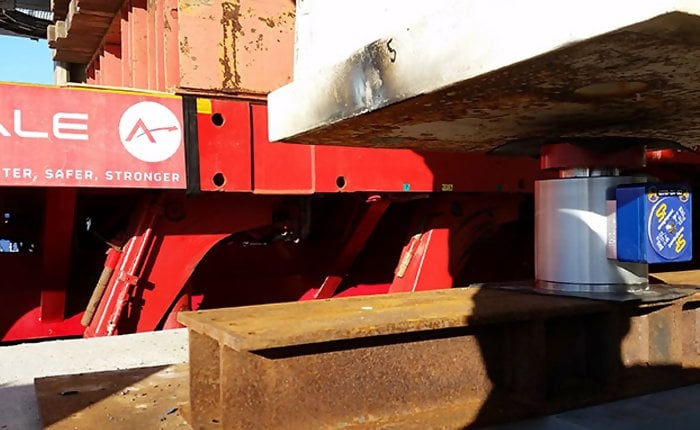

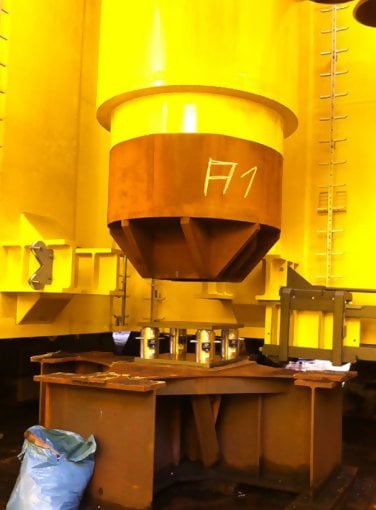

Photo Gallery
Features
- No easy to break cables
- Industry Leading Wireless Range of 700m / 2300 feet
- No vulnerable external antennae
- Massive battery life from standard AA batteries
- Remote On-Off
- Error Free Data Transmission
- Stainless Steel loadcell with lightweight aluminium jacket
- Connects to Straightpoint range of wireless accessories and software solutions.
- Design validated by F.E.A.
Specifications
| Protection | NEMA 6 / IP67 | | Data Rate | 3 Hz ( Configurable to 200 Hz) | | Range | 2300 ft / 700 m | | Frequency | 2.4GHz | | Accuracy | +/- 0.3% of applied load | | Operating Temp | 14 to 158°F / -10 to +50 °C | | Battery Life | Loadcell 1200 Hrs continuous | | Battery Type | Loadcell 4x AA Alkaline |
Ranges
| WNI 5TCU | 11000 lb
5 te | 2 lb
0.001 te | 13.64 lb
6.2 kg | 3:1 | 5.00 In
127 mm | | WNI 10TCU | 22000 lb
10 te | 5 lb
0.002 te | 13.64 lb
6.2 kg | 3:1 | 5.00 In
127 mm | | WNI 25TCU | 55000 lb
25 te | 10 lb
0.005 te | 13.64 lb
6.2 kg | 3:1 | 5.00 In
127 mm | | WNI 50TCU | 110000 lb
50 te | 20 lb
0.02 te | 13.64 lb
6.2 kg | 3:1 | 5.00 In
127 mm | | WNI 100TCU | 220000 lb
100 te | 100 lb
0.1 te | 34 lb
15.5 kg | 3:1 | 7.24 In
184 mm | | WNI 150TCU | 330000 lb
150 te | 100 lb
0.1 te | 34 lb
15.5 kg | 3:1 | 7.24 In
184 mm | | WNI 300TCU | 660000 lb
300 te | 200 lb
0.1 te | 143 lb
65 kg | 3:1 | 11.81 In
300 mm | | WNI 500TCU | 1100000 lb
500 te | 500 lb
0.5 te | 143 lb
65 kg | 3:1 | 11.81 In
300 mm |
Complete Kit
Supplied in a foam fitted carrying case with AA batteries, calibration certificate, and instruction manual.
Related Products
SW-HHP Hand-Held Display
Hand-Held Plus Wireless Load Cell Indicator - User settable 90db audible overload alarm
- Multiple display units – tonnes, lbs, kg and kN
| |
SW-MWLC
Multiple Wireless Load Cell Controller Software - Display and logs data up to 100 Straightpoint wireless load cells
| |
