Universal Torque Sensor

Capacities available from 10 ozin to 100 lbin

Calibrate torque tools with this torque measurement sensor, or use it as a component of a torque testing system. Tapped holes on every surface allow for easy mounting to a work bench, or fixture within a testing system. Capacities available from 10 ozin to 100 lbin.

line
Features
line

Compatible with the 5i and 3i digital indicators
Rugged aluminum housing
NIST-traceable certificate of calibration included
Universal mounting

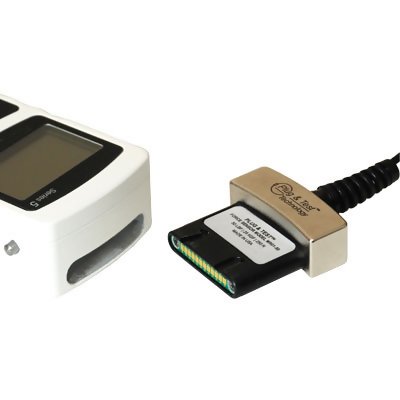

Unique Plug & TestTM connector holds all calibration and configuration data
May be used for torque tool calibration or as a component of a torque testing system

line
Photo Gallery
line

Series R52 torque sensors' square design with threaded mounting holes on each surface lend this sensor to flexible configurations. Square hole and mounting holes on round torque plate permit the mounting of various attachments

line
Force Ranges
line

Model	oz Fin	lb Fin	lb Fft	gF cm	kgF mm	N mm
MR52-10Z	10 0.006	-	-	700 0.5	7 0.005	70 0.05
MR52-20Z	20 0.01	-	-	1400 1	14 0.01	140 0.1
MR52-50Z	50 0.02	-	-	3600 2	36 0.02	350 0.2
MR52-12	-	12 0.005	1 0.0005	-	140 0.1	-
MR52-50	-	50 0.02	4 0.002	-	580 0.5	-
MR52-100	-	100 0.05	8 0.005	-	1150 0.5	-

N/A = Gauge is unable to display these units.

line
Specifications
line

Accuracy	± 0.35% of full scale ±1 digit + indicator
Weight	1.2 lbs (0.5 kg)
Warranty	3 Years
