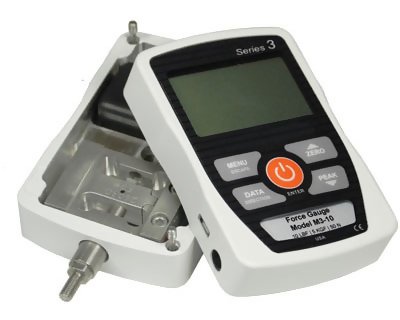

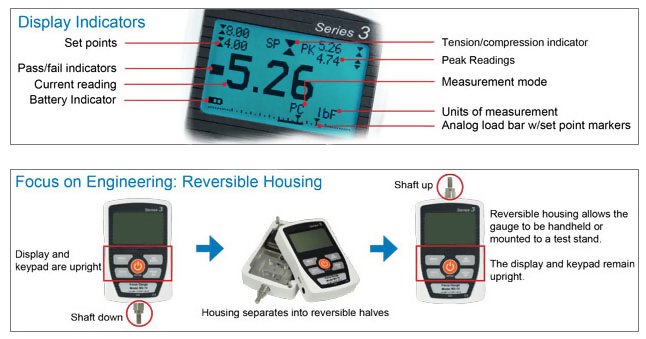

The new Mark-10 Series-3 Digital Force Gauge are designed for measuring tension and compression (push & pull) force testing in numerous applications from 0.12 lbF to 500 lbF (0.5 N to 2500 N). The gauges feature a sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges’ features and configurable parameters. USB output (non-streaming) is provided for data collection purposes. Set point indicators are provided for pass-fail testing. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force. An ergonomic, reversible aluminum housing allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 3 digital force gauges are directly compatible with a wide range of test stands, grips, and software. The gauges include MESUR™ Lite data acquisition software. MESUR™ Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.
Features
- High-speed 2,000 Hz sampling rate
- Includes NIST Traceable Calibration Cert
- 3 Year Warranty

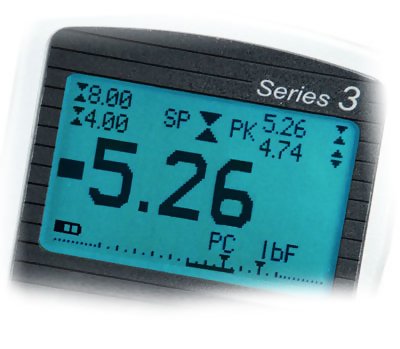

- Large backlit graphic display

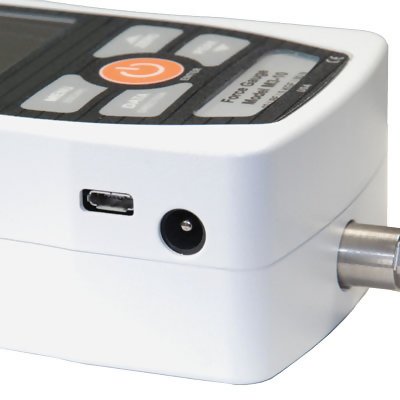

- USB data output (single data point)
- Programmable set points with pass/fail indicators
- Peak readings and set points always displayed
- 3 selectable units of measurement
Photo Gallery
Force Ranges
| Model | Lb | Kg | G | N | | M3-012 | 0.12 |
0.0001 |
| 50 |
0.05 | 0.5 |
0.0005 | | M3-025 | 0.25 |
0.0002 |
| 100 |
0.1 | 1 |
0.001 | | M3-05 | 0.5 |
0.0005 |
| 250 |
0.2 | 2.5 |
0.002 | | M3-2 | 2 |
0.002 | 1 |
0.001 |
| 10 |
0.01 | | M3-5 | 5 |
0.005 | 2.5 |
0.002 |
| 25 |
0.02 | | M3-10 | 10 |
0.01 | 5 |
0.005 |
| 50 |
0.05 | | M3-20 | 20 |
0.02 | 10 |
0.01 |
| 100 |
0.1 | | M3-50 | 50 |
0.05 | 25 |
0.02 |
| 250 |
0.2 | | M3-100 | 100 |
0.1 | 50 |
0.05 |
| 500 |
0.5 | | M3-200 | 200 |
0.2 | 100 |
0.1 |
| 1000 |
1 | | M3-500 | 500 |
0.5 | 250 |
0.2 |
| 2500 |
2 |
Specifications
| Accuracy | ±0.3% of full scale ±1 digit | | Sampling rate | 2,000 Hz | | Power | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low | | Battery Life | Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use | | Measurement units | lbF, gF, kgF, N (depending on model) | | USB Output | Single Data Point sent By pressing DATA key | | Configurable Settings | Digital filters, USB output settings, backlight, automatic shutoff, key tones, audio alarms, default settings, calibration | | Safe overload | 150% of full scale (display shows “OVER” at 110% and above) | | Weight | M3-012 - M3-100: 0.7 lb [0.33 kg]
M3-200 - M3-500: 0.9 lb [0.41 kg] | | Warranty | 3 years |
Complete Kit

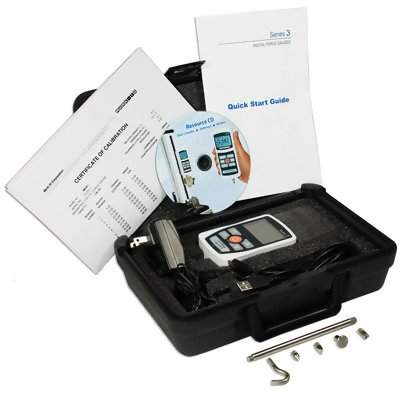

The Series 3 is supplied as a complete kit including the force gauge, carrying case, chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR Lite software, MESURgauge DEMO software, and user's guide), NIST-traceable certificate of calibration (data is available for an additional charge)

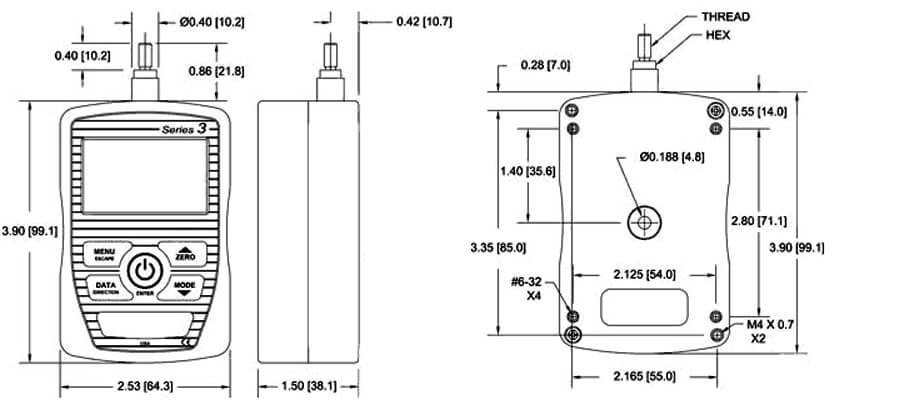

Dimensions
| Thread Specs | Thread | Hex | | M3-012 M3-100 | # 10-32 UNF | 5/16 (7.94mm) | | M3-200 M3-500 | 5/16 18 UNC | 11/32 (8.74mm) |
Accessories
| M3-012
M3-20 | M3-50
M3-100 | M3-200
M3-500 | | Extension Rods | G1024 | G1024 | G1031 | | Cone | G1026 | G1026 | G1033 | | Chisel | G1025 | G1025 | G1032 | | V-Groove | G1027 | G1027 | G1034 | | Flat | G1029 | G1029 | G1036 | | Hook | G1028 | G1038 | G1035 | | Coupling | NA | G1039 | G1037 |
Special Attachments
Related Products

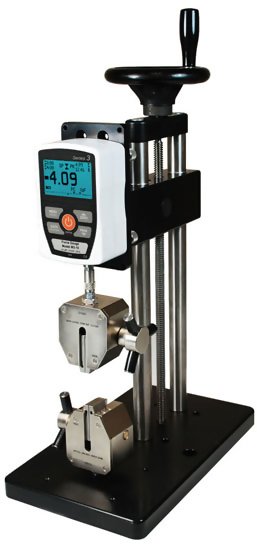

ES30
Precision Hand Wheel Test Stand- 200lb Capacity
- Modular design: base may be removed and the stand may be used as part of a larger system. It also provides for alternative mounting
- Removable base plate with 25 #10-32 threaded holes for fixture mounting
| |
