Price: $ 250.00 up to $ 350.00
Mark-10 G1008 / G1015 Film & Paper Grips
Tensile testing of film, paper, and other thin materials
100 lb capacity
| Capacity: 100lb These grips are designed for gripping film, paper, labels, packaging, and other thin materials for tensile and peel testing. Adjustable serrated interlocking jaws effectively grip the samples for up to 100 lb of force. The grips are available in four sizes: 1", 3", 5", and 7". Use them with a force gauge and a test stand to create a complete testing system.
Specifications
| Model | Description | | G1008 | Film & paper grip
Capacity: 100 lb
Size: 1.18"W x 1.25"D x 2.6"L
Weight: 0.31 lb
Thread: #10-32 UNF
Sample size: 1" wide | | G1015-1 | Film & paper grip
Capacity: 100 lb
Size: 1.85"D x 3"H x 3"W
Weight: 0.57 lb
Thread: #10-32 UNF
Sample size: 3" wide | | G1015-2 | Film & paper grip
Capacity: 100 lb
Size: 1.85"D x 3"H x 5"W
Weight: 0.67 lb
Thread: #10-32 UNF
Sample size: 5" wide | | G1015-3 | Film & paper grip
Capacity: 100 lb
Size: 1.85"D x 3"H x 7"W
Weight: 0.77 lb
Thread: #10-32 UNF
Sample size: 7" wide |

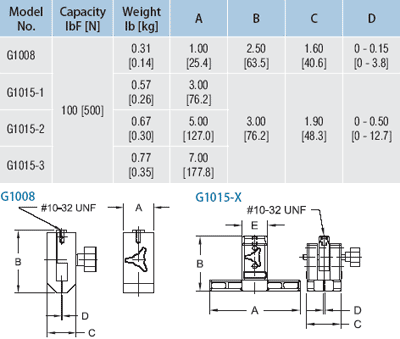

Dimensions
