Price:
High Precision Torque Tester for tool verification and calibration
AWS TT-QCM / AWS-QCM or Aimco Auditor Torque Wrench Tester
Accuracy: ±0.5% of reading (optional ±0.25% available)
Capacities from 10 in-oz to 2000 lb-ft
Displays torque in 8 measuring units: oz-in, lb-in, lb-ft, N-m, cN-m, kgf-cm, gf-cm, kgf-m

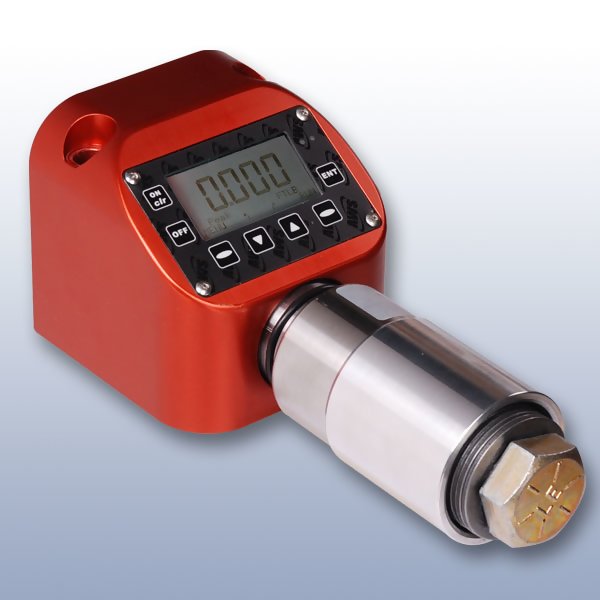

The AWS TT-QCM / AWS-QCM / Aimco Auditor Torque Tester is designed for verification and calibration of a wide range of torque wrenches and torque tools. It's bench top design is perfect for testing click, dial, and digital wrenches, plus most power tools including impulse, DC electric and pneumatic. A large LCD display with easy to navigate menu allows for quick setup. Storage memory allows 999 data points to be saved to the unit for review, or transmitted to a local printer or PC via the standard RS232 interface. High and low limits are easily set, and a panel mounted LED provides visual notification to the user when torque reaches these limits. Systems include dedicated internal transducers in vertical or horizontal configurations, it can be switched by the operator after purchase.
Photo Gallery
Features
- Bidirectional accuracy of ±0.5% of indicated reading, ±0.25% Optional
- Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
- Transducer can be mounted in a vertical or horizontal orientation and switched by the user at a later time if needed
- NiMH rechargeable batteries provide 8-10 hours continuous use
- 3 modes of operation: Track, Peak and 1st Peak
- Includes NIST-Traceable Calibration Certificate
Torque Ranges
| Model | Range | Drive Size | | TT-QCMIO-10* | 1 - 10 Oz-in | 1/4" | | TT-QCMIO-50* | 5 - 50 Oz-in | 1/4" | | TT-QCMIO-100 | 10 - 100 Oz-in | 1/4" | | TT-QCMI-10 | 1.0 - 10 Lb-in | 1/4" | | TT-QCMIO-200 | 20 - 200 Oz-in | 1/4" | | TT-QCMI-25 | 2.5 - 25 Lb-in | 1/4" | | TT-QCMI-50 | 5.0 - 50 Lb-in | 1/4" | | TT-QCMI-100 | 10 - 100 Lb-in | 1/4" | | TT-QCMI-150 | 15 - 150 Lb-in | 1/4" | | TT-QCMI-250 | 25 - 250 Lb-in | 3/8" | | TT-QCMI-500 | 50 - 500 Lb-in | 3/8" | | TT-QCMI-750 | 75 - 750 Lb-in | 3/8" | | TT-QCMI-1000 | 100 - 1000 Lb-in | 3/8" | | TT-QCMF-100 | 10 - 100 Lb-ft | 1/2" | | TT-QCMF-150 | 15 - 150 Lb-ft | 1/2" | | TT-QCMF-250 | 25 - 250 Lb-ft | 1/2" | | TT-QCMF-500 | 50 - 500 Lb-ft | 3/4" | | TT-QCMF-600 | 60 - 600 Lb-ft | 3/4" | | TT-QCMF-750 | 75 - 750 Lb-ft | 3/4" | | TT-QCMF-1000 | 100 - 1000 Lb-ft | 1" | | TT-QCMF-2000 | 200 - 2000 Lb-ft | 1" |
*For 10 & 50 in-oz accuracy is +/-1% from 10-100% of capacity
Specifications
| Calibrated Range | 10-100% Full Scale, bi-directional | | Accuracy | ±0.5% of indicated reading from 10-100% of capacity (Bidirectional)
±0.25% Optional | | Resolution | 4 Active Digits | | Overload Protection | 200% Full Scale bi-directional | | Operating Modes | Track, Peak, 1st Peak | | Filtering | Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz | | Data Output | RS-232 | | Alarm Limits | Panel Mounted LED for Visual Alarm Limits | | Power | Internal NiMH battery, AC Adapter / Charger (included) | | Weight | Aproximately 3lbs depending on transducer | | Operating Temp | 32 - 120 °F (0-50 °C) | | Warranty | 1 Year | | Calibration Certificate | Includes NIST Traceable calibration certificate with data | | Standard Accesories | Joint Simulator for 1/4" & 3/8" drives, AC adapter/Charger | | Optional Accessories | Joint Simulators for 1/2", 3/4" & 1" Transducers |
