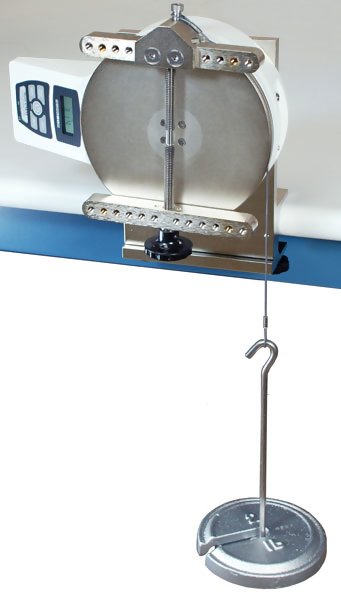

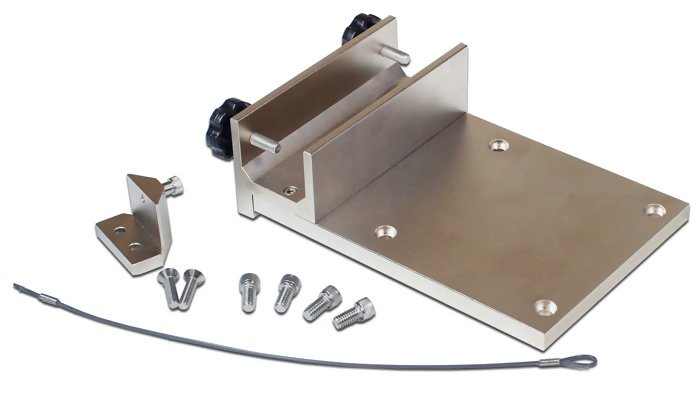

This calibration kit is designed to permit the field calibration of any CAP-TT01 Cap Torque Tester. The kit contains a complete set of attachments required to mount the tester to a bench, as well as the necessary brackets and cable to mount weights, as follows:

• Cable with looped ends
• Attachment, cable to CAP-TT01
• Set of hardware

Note: Weights are not available from Checkline. Suggested source for calibration weights:

Rice Lake Weighing Systems - www.ricelake.com
Troemner Precision Weights - www.troemner.com

CAP-TT01 torque testers must be calibrated at full scale in English units only. Refer to the CAP-TT01 user's guide for complete calibration instructions. The following weight combinations are recommended:

• CAP-TT01-12:
  • 3.6 lb, as follows:
    • 1 lb hanger weight- qty. 1
    • 2 lb slotted weight - qty. 1
    • 0.5 lb weight - qty. 1
    • 0.1 lb weight - qty. 1


• CAP-TT01-50:
  • 15 lb, as follows:
    • 1 lb hanger weight- qty. 1
    • 10 lb slotted weight - qty. 1
    • 2 lb slotted weight - qty. 2


• CAP-TT01-100:
  • 30 lb, as follows:
    • 1 lb hanger weight- qty. 1
    • 20 lb slotted weight - qty. 1
    • 5 lb slotted weight - qty. 1
    • 2 lb slotted weight - qty. 2

Features

• Stainless steel loading plate with #10-32 threaded holes accommodates fixtures and attachments
• Threaded holes are not drilled through the plate, for protection from debris and liquid
• USB, RS-232, Mitutoyo, and analog outputs
• Automatic output, data storage, and zeroing upon sample break helps automate testing processes
• First / second peak detection for torque tool testing, bottle cap testing, and other applications
• 1,000-point data memory with statistics and outputs
• Password protection prevents unauthorized changes
• Programmable set point indicators and outputs for pass/ fail determination
• High-speed 7,000 Hz sampling rate accurately captures peak torque values
• Configurable audio alarms and key tones
• 5 selectable units of measurement
• MESURTM Lite data collection software included
