产品名称 Mountz RTSX-A Rotary Torque and Angle Transducer,Mountz RTSX-A旋转扭矩和角度传感器
产品货号
产品价格 现货询价，电话：010-67529703
产品规格
产品品牌 Abq Industrial
产品概述
产品详情 Description
Price:
Mountz RTSX-A Rotary Torque and Angle Transducer
Various models that range from 1 Lb-in to 800 Lb-ft.
For use with most power tools or rotational measurement applications.

The Mountz RTSX-A rotary torque and angle transducer measures actual torque being applied from the driver to the fastener as well as the degrees of rotation.

Features an instant auto-recognition system of the RTSX connected to the PTT & LTT.

Not for use with impact wrenches

line
Features
line

  • Accuracy ± .25% of full scale.
  • Angle Output: 2 channel quadrature, 360 pulses per rotation.
  • Ability to measure the rotation angle of a fastener. Joint rate and breakaway torque can be measured too.
  • Bi-directional.
  • For use with most power tools or rotational measurement applications.
  • Supplied with NIST-Traceable Certification of Calibration

line
Video
line

line
Torque Ranges
line

ModelRangeInput DriveOutput Drive
RTSX10i-HA 1 - 10 lbf-in1/4" M/Hex1/4" F/Hex
RTSX10i-A 1 - 10 lbf-in1/4" F/Sq1/4" M/Sq
RTSX50i-HA 5 - 50 lbf-in1/4" M/Hex1/4" F/Hex
RTSX50i-A 5 - 50 lbf-in1/4" F/Sq1/4" M/Sq
RTSX100i-HA 10 - 100 lbf-in1/4" M/Hex1/4" F/Hex
RTSX100i-A 10 - 100 lbf-in1/4" F/Sq1/4" M/Sq
RTSX200i-HA 20 - 200 lbf-in1/4" M/Hex1/4" F/Hex
RTSX200i-A 20 - 200 lbf-in1/4" F/Sq1/4" M/Sq
RTSX50F-A 5 - 50 lbf-ft3/8" F/Sq3/8" M/Sq
RTSX100F-A 10 - 100 lbf-ft1/2" F/Sq1/2" M/Sq
RTSX400F-A 40 - 400 lbf-ft3/4" F/Sq3/4" M/Sq
RTSX800F-A 80 - 800 lbf-ft1" F/Sq1" M/Sq


lineSpecificationsline

Output at Rated Capacity > 6 Nm [53 lbf.in] rated torque 2 mV/V
InterchanegeabilityMatched for mv/v and shunt calibration +0.3% FS
Nonlinearity+0.2% FS
Excitation Recommended10V DC or AC RMS
Bridge Resistance350 ohms
Usable Temperature Range41-122 degrees F
Safe Overload125% of rated output

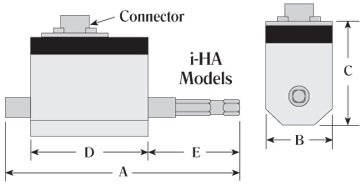

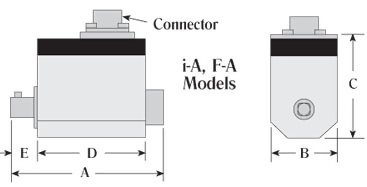

lineDimensionsline

ModelABCDE
RTSX10i-HA101 mm28 mm52 mm58 mm28 mm
RTSX10i-A75 mm28 mm52 mm58 mm8.5 mm
RTSX50i-HA101 mm28 mm52 mm58 mm28 mm
RTSX50i-A75 mm28 mm52 mm58 mm8.5 mm
RTSX100i-HA101 mm28 mm52 mm58 mm28 mm
RTSX100i-A75 mm28 mm52 mm58 mm8.5 mm
RTSX200i-HA101 mm28 mm52 mm58 mm28 mm
RTSX200i-A75 mm28 mm52 mm58 mm8.5 mm
RTSX50F-A101 mm38 mm58 mm59 mm21.5 mm
RTSX100F-A106 mm38 mm58 mm59 mm26 mm
RTSX400F-A135 mm58 mm76 mm64 mm40 mm
RTSX800F-A177 mm58 mm90 mm73 mm57.5 mm


lineRelated Productsline

PTT-2000
Torque Analyzer
  • Operates with Torque & Force sensors
  • Real time graph of torque vs. time using associated PC Windows software
related

line

LTT
Torque and Angle Analyzer with USB Output
  • Built-in Tool Tests operation
  • Recommended for all hand screwdrivers, wrenches or power tools
related
