世联博研公司现货供应Abq Industrial品牌订货号为的DTX2 Cap Torque Tester With Memory & Data Output,带记忆功能的DTX2帽扭矩测试仪产品

DTX2 Cap Torque Tester / Meter

Memory for 1000 values with USB Output

3 Ranges up to 90 Lb-in

Selectable units of measure: lbf-in, kgf-cm, N-m and N-cm

Includes Hi/Go/Lo Limits and LED Indicators

3 Ranges up to 85 lbf-in / 100.0 kgf-cm / 1000 N-cm
Accuracy: ±0.5% F.S. ±1 LSD

The new easy-to-use Check-Line DTX2 cap torque tester accurately measures twist on and twist off force. The tester offers programmable high/low setpoints for go/no-go testing. ORANGE lights up for measurements less than Low setpoint, GREEN for between High and Low setpoint, and RED for over High setpoint.

Store up to 1000 values in memory, which can be transmitted using the serial output. Use the real time mode to display torque transients, or peak mode to capture the peak torque achieved during a test. Selectable measuring units of lbf-in, kgf-cm, or N-cm.

Cap testers include AC adapter/charger and built-in NiCad rechargeable batteries, 1" high standard pegs (optional long pegs available).

line
Features
line

2 Year Warranty
Suitable for containers from 1/2" - 7" (13 - 178mm) in diameter
lbf-in, kgf-cm, and N-cm units are selectable
Real time and peak mode (selectable)
1000 Data memory for computer download
Includes NIST-Traceable calibration certificate
Overload capacity 200% of F.S.
Both clockwise and counterclockwise operation
Can be operated with internal rechargeable battery or AC adapter
ISO/IEC 17025 Long-form Certificate & Test Data is optionally available

line
Photo Gallery
line

line
Force Ranges
line

Model	Capacity lbf-in	Capacity kgf-cm	Capacity N-cm
DTX2-15B	15.00 (0.01 lbf-in)	20.00 (0.01 kgf-cm)	200.0 (0.1 N-cm)
DTX2-40B	40.00 (0.01 lbf-in)	50.00 (0.01 kgf-cm)	500.0 (0.1 N-cm)
DTX2-85B	85.00 lbf-in (0.1 lbf-in)	100.0 kgf-cm (0.1 kgf-cm)	1000 N-cm (1 N-cm)

line
Typical Torque Values (LB-IN)
line

Cap dia. in mm	Phenolic/ Urea Cap On Glass		Phenolic/Urea Cap on Plastic		PP/PE Cap on Glass		PP/PE Cap on Plastic
Cap dia. in mm	Close Torque	Open Torque	Close Torque	Open Torque	Close Torque	Open Torque	Close Torque	Open Torque
15	8	4	6	3	12	7	8	4
18	9	5	7	4	13	8	9	5
20	10	5	8	4	15	9	10	5
22	11	6	9	5	17	10	11	6
24	12	6	10	5	18	11	12	6
28	14	7	12	6	21	12	14	7
33	18	9	15	7	24	14	17	8
38	20	10	17	7	29	17	19	9
43	22	11	18	9	33	20	22	11
48	24	14	20	10	26	22	24	12
58	28	14	24	12	44	26	29	14
70	35	18	28	14	52	32	35	17
89	45	22	36	18	65	40	45	22
100	50	25	40	20	75	38	50	25

line Specifications
line

Max Sample Diameter	1/2" - 7" (13 - 178mm)
Gross Shipping Weight	14 lbs
Shipping Dimensions	17 x 13 x 10" (approx.)
Pegs	1" (standard) 4" (optional)

line

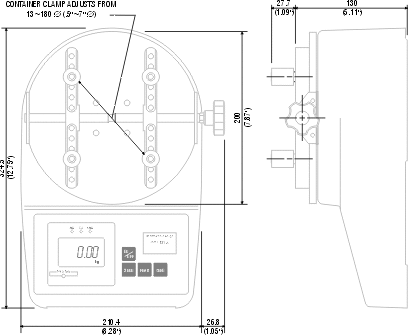

Dimensions
line

dimensions
