CAP-T Cap Torque Tester / Closure Torque Tester

Optional Data Output Available

3 Ranges up to 100 lbf-in

Units of measure: lbf-in, kgf-cm, and N-cm (selectable)

Measures in "Continuous" or "Peak" mode

The new CAP-T Cap Torque Tester accurately measures twist-off and twist-on force. The CAP-T is an ideal tester for bottlers, food and beverage companies, and others. The tester features a solid aluminum housing and rugged construction for many years of service in laboratory or production environments. Adjustable posts effectively grip a broad range of container shapes and sizes, while a set of optional jaws are available as an alternative gripping method. The CAP-T closure torque meter captures peak torque in both clockwise and counterclockwise directions for application and removal measurements.

The CAP-T-RS offers a data output button for easy transfer of the current reading to a PC or printer for quality reporting.

line
Features
line

Accepts samples up to 7.5" (189.4 mm) dia.
Selectable units of measurement (lb-in, kg-mm, N-cm)
Real time and peak mode (selectable)
Includes NIST Traceable Calibration Certificate
Both clockwise and counterclockwise operation
Battery or AC operation
Accuracy: ±0.5% of full scale ±1 digit
Outstanding Value
RS-232 and Digimatic Serial Outputs for connection to printer or PC available on CAP-T-xx-RS models available
3 Year Warranty

line
Photo Gallery
line

line
Force Ranges
line

Model	Capacity	Resolution
CAP-T-12	12 lb-in 140 kg-mm 135 N-cm	0.01 lb-in 0.1 kg-mm 0.1 N-cm
CAP-T-50	50 lb-in 580 kg-mm 570 N-cm	0.05 lb-in 0.5 kg-mm 0.5 N-cm
CAP-T-100	100 lb-in 1150 kg-mm 1150 N-cm	0.1 lb-in 1 kg-mm 1 N-cm

line
Typical Torque Values (LB-IN)
line

Cap dia. in mm	Phenolic / Urea Cap On Glass		Phenolic / Urea Cap on Plastic		PP / PE Cap on Glass		PP / PE Cap on Plastic
Cap dia. in mm	Close Torque	Open Torque	Close Torque	Open Torque	Close Torque	Open Torque	Close Torque	Open Torque
15	8	4	6	3	12	7	8	4
18	9	5	7	4	13	8	9	5
20	10	5	8	4	15	9	10	5
22	11	6	9	5	17	10	11	6
24	12	6	10	5	18	11	12	6
28	14	7	12	6	21	12	14	7
33	18	9	15	7	24	14	17	8
38	20	10	17	7	29	17	19	9
43	22	11	18	9	33	20	22	11
48	24	14	20	10	26	22	24	12
58	28	14	24	12	44	26	29	14
70	35	18	28	14	52	32	35	17
89	45	22	36	18	65	40	45	22
100	50	25	40	20	75	38	50	25

line

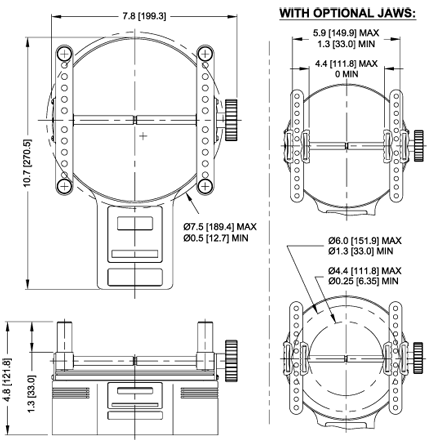

Dimensions
line

line
Specifications
line

Accuracy	± 0.5% of full scale, ±1 least significant digit
Max. Sample Diameter	7.5" (189.4 mm)
Sampling rate	30 readings/sec
Display	4 1/2 digit LCD with .3" high characters. Indicators for low battery, units and mode of operation
Power	Non-rechargeable 9V battery or AC operation with included adapter
Battery Life	30 hours of continuous use, LO BAT indicator
Overload Protection	150% or higher
Weight	10 lbs (4.5 kg)
Warranty	3 years
