世联博研公司现货供应Abq Industrial品牌订货号为的Checkline TSD Torque Screwdriver,Checkline TSD扭矩螺丝刀产品

Price:

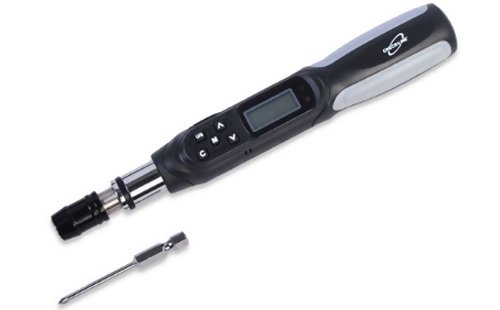

Checkline TSD Digital Torque Screwdriver

2 Ranges, Up to 35 lbf-in capacity

Units of measure: lb-in, kg-cm, cN-m

2 Models
TSD-50: Measuring Range: 0.45 - 4.50 lb-in / 5.0 - 50.0 cN-M (0.05 - 0.5 Nm)
TSD-400: Measuring Range: 3.50 - 35.00 lb-in / 40.0 - 400.0 cN-M (0.4 - 4 Nm)

Checkline TSD digital torque screwdrivers are designed for accurate measurement of application and removal torque of screws and fasteners. The TSD measures bi-directional torque in real-time or peak modes. 9 programmable target values can be preset to allow the operator to quickly fasten screws using audible and visual indicators to alert when the target value is reached or passed.

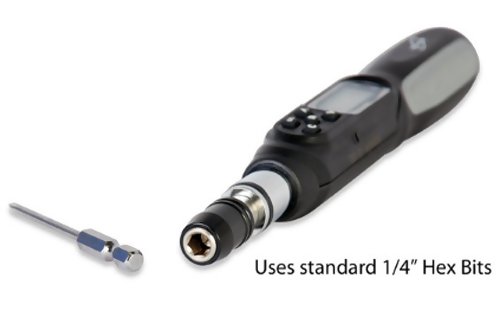

The TSD uses standard 1/4" hex bits allowing it to be used on a wide range of applications. An auto-locking bit holder allows for quick changing between sizes

line
Photo Gallery
line

line
Features
line

Uses standard 1/4" bits
Clockwise & Counter Clockwise Torque Measurement
9 Programmable Target Torque Setpoints
Real time & Peak Torque Measurement
Display Units: lb-in, cN-M and Kg-cm
1 AAA battery provides 12 hours of continuous use
CE Certified

line
Force Ranges
line

Model	Range	Resolution
TSD-50	0.45 - 4.50 lb-in 5.0 - 50.0 cN-M 0.50 - 5.00 kg-cm	0.01 lb-in 0.1 cN-M 0.01 kg-cm
TSD-400	3.50 - 35.00 lb-in 40.0 - 400.0 cN-M 4.00 - 40.00 kg-cm	0.01 lb-in 0.1 cN-M 0.01 kg-cm

line
Quick Start Instructions
line

Press C to power on screwdriver.
Press U/S to select desired measuring unit.
To select TRACK or PEAK mode press and hold the U/S key for 2 seconds, the display will show MODE, then press the up or down key to select between PEAK or TRACK mode (indicated by a small P or T in the bottom right corner of display). Then press the U/Skey three times to confirm your selection and return to measurement mode.
Use up and down arrow keys to enter target torque. If you are simply measuring and do not have a target, adjust the setpoint to the highest value (maximum capacity of the screwdriver).

Note, when there is no torque applied the TSD will display the target value or previous reading (in Peak mode).

line
Specifications
line

Accuracy	Clockwise: ±2% Counterclockwise: ±3% (of indicated) Guaranteed from 20-100% of capacity.
Presets	9 Programmable setpoints with both audible beep and Green/Red LED indicator
Memory	50 readings
Presets	9 Programmable setpoints with both audible beep and Green/Red LED indicator
Drive	1/4 Inch - 6.35 mm Hex
Operating Modes	Peak / Track (real-time)
Power Supply	1x AAA Battery (included)
Working Time	12 hours continuous use
Auto Off	Automatic power off after 5 minutes of non-use
Operating Temp.	-10°C - 60°C
Storage Temp.	-20°C - 70°C
Dimensions	Length (without bit): 200mm / 8in Diameter at largest point: 29.5mm / 1.16in
Weight	100%g
Warranty	1 Year

line
Complete Kit
line

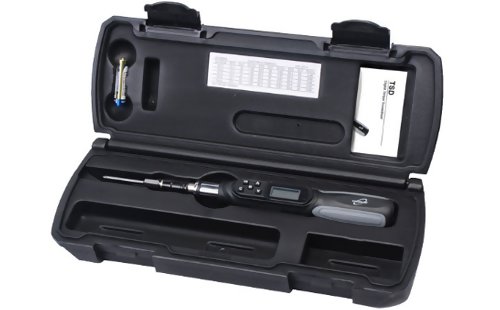

The TSD is supplied as a complete kit including the torque screw driver, Phillips size 0 bit (2.1in / 55mm length), instruction manual, factory calibration cert and 1 AAA battery in a hard plastic carrying case.

complete kit

line
Related Products
line

DID-4
Digital Torque Screwdriver

Peak, Real Time and Peak Down measuring mode (selectable)
Runs on internal NiCad batteries (8 hour use) Auto shut-off after 10 min. of non-use
USB data output for SPC capability

line

TT-QC
Torque Tool Tester - AWS-QC

Bidirectional accuracy of ± 1% of indicated reading

line

GLK
Digital Torque Screwdriver

Five programmable torque presets ideal for frequent operations
High accuracy ±1.5% F.S. both CW and CCW directions

line
Downloads
line

TSD Torque Screwdriver - Instruction Manual
