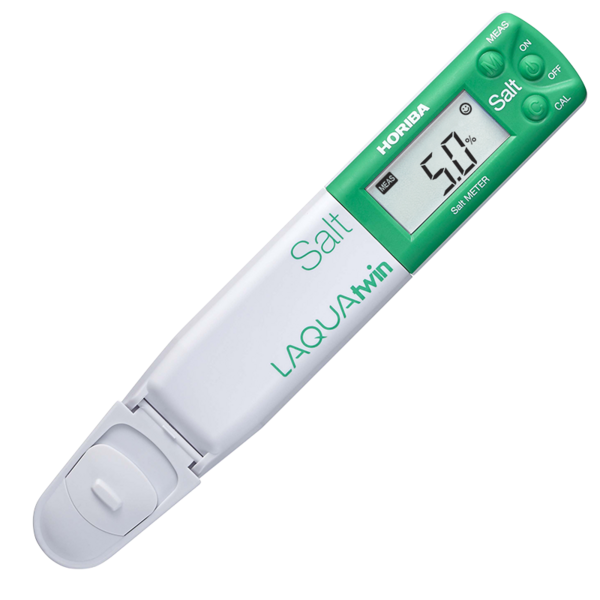

Horiba LAQUAtwin Salt-22 Compact Water Quality Salt Meter 3200689158
Minimum sample volume: 0.3ml (0.05ml with sampling sheet B)
Salinity, mV, and temperature display
Up to 2 calibration points
Auto calibration
Auto standard recognition: 0.5 & 5.0% NaCl (default)
The only pocket meter that directly measures sodium ion concentration in 0.3ml sample (or 0.05ml sample with sampling sheet B) and converts it into salinity or NaCl salt concentration. No need for a beaker to calibrate the meter or measure a sample. Just place few drops of the standard or sample onto the sensor. This procedure saves you time and prevents wasting your precious sample.
Features
- Minimum sample volume: 0.3ml (0.05ml with sampling sheet B)
- Salinity, mV, and temperature display
- Up to 2 calibration points
- Auto calibration
- Auto standard recognition: 0.5 & 5.0% NaCl (default)
- Changeable high and low calibration values
- Temperature calibration: 5 to 40.0 ºC
- Auto stable / auto hold measurement
- Auto power off: 30 mins.
- Low battery indicator
- IP67 Rating dust & waterproof
- Replaceable sensor
- 400 Hours battery life: continuous use without backlight
- Material: ABS epoxy
- Display: custom (monochrome) digital LCD with backlight
- Operating conditions: 5 to 40 ºC, 85% or less relative humidity
- Warranty: 2 years - meter; 6 months - sensor
- Packed in handy carrying case
- Supplied with 0.5% & 5.0% NaCl standards (14ml each), 5 x sampling sheets B, 2 x CR2032 batteries, dropper, instruction and quick manuals
Specifications
| Measurement Principle | Ion Selective Electrode | | Minimum Sample Volume | 0.3ml (0.05ml with sampling sheet B) | | Salinity Range | 0.01 to 25% by weight | | Resolution | 0.00 to 0.99%: 0.01%
1.0 to 9.9%: 0.1%
10 to 25%: 1% | | Calibration Points | Up to 2 | | Accuracy | ±10% of reading value | | Temperature Display | 0 to 50.0 ºC | | Temperature Calibration | 5 to 40.0 ºC | | Display | Custom (monochrome) digital LCD with backlight | | Operating Temperature | 5 to 40.0 ºC | | Operating Humidity | 85% or less relative humidity (no condensation) | | Power | CR2032 batteries (2) | | Battery Life | Approx. 400 hours in continuous use without backlight | | Material | ABS epoxy body | | Dimensions | 164 x 29 x 20 mm (excluding projections) | | Mass | Approx. 55 g (including sensor and batteries) | | Functions | - Auto Calibration
- Auto Standard Recognition
- Changeable High & Low Calibration Values
- Temperature Calibration
- Auto Hold / Auto Stable Measurement
- Switchable Backlight
- Automatic Power Off (30mins)
- Low Battery Indicator
- IP67 Dust / Waterproof
- Replaceable sensor
|
Photo Gallery
Related Products

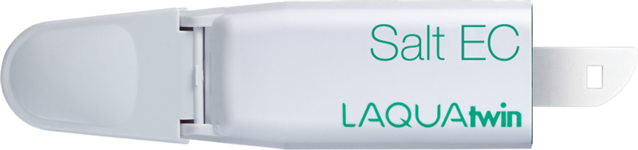

Salt Sensor S021 -
