Pocket Tension Meter for Circular Knitting Applications with Speed and Length Meter
Measuring ranges 0.5 - 100.0 g
Measuring Range: 0.5 - 100.0 grams or cN

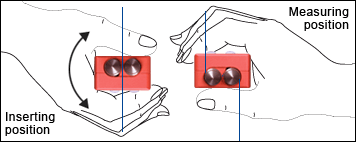

The PT-100-L digital tension meter is designed for measurement of low tensions of fibers, yarns. etc. typically found on circular knitting machines etc. The PT-100-L is also capable of measuring the speed and length of the yarn/fiber from each feeder using the supplied magnetic sensor. It is battery-powered and pocket-sized for convenient storage and features and extremely small measuring head for applications with limited access space. Easy Slide-In material threading by cone shaped guide roler and turning the instrument 180 degrees.
Features
- Continuous automatic "zero setting" in all measuring positions insures highest accuracy and repeatability
- Adjustable electronic damping to provide steady tension readings
- V-Grooved Ball-bearing guide rollers with measuring head width of 24 mm (outer distance of guide rollers)
- Rollers are hard coated aluminum for speeds up to 2,000 m/min
- Compact aluminum housing is rugged and features an easy to read LCD Display
- PT-100-L is supplied with a magnetic sensor to allow measurement of length for preset number of machine revolutions
- NIST-Traceable Calibration Certificate & Test Report is optionally available
- User-set measuring units of Grams or cN and can be used in right or left hand as desired
- Rechargeable battery provides approx. 40 hours of continuous use
- Each instrument is individually calibrated for highest accuracy and is CE Certified.
Specifications
| Accuracy | ±1.5 % full scale ±1 digit
Length measuring: ±0.5 % and ±1 digit | | Overload protection | 200% full scale | | Measuring units | cN, gr, m/min, in/min, m, in switchable | | Measuring principle | Strain gauge full bridge loadell | | Damping | Adjustable electronic damping, averaging | | Display | LCD 3 ½ digits, 9 mm high | | Display update rate | 2 times per second | | Auto power off | After 3 minutes off non use | | Temperature range | 10 - 45 ºC | | Air humidity | 85 % RH, max. | | Power supply | LiPo accumulator (approx. 40 h continous use, charging time approx. 3.5 h) and Lithium Polymer Rechargeable Battery (approx. 40 hours continous use, charging time approx. 3.5 h) with Charger 100 - 240 V AC with country adapters (EU/USA/UK) | | Housing material | Aluminium | | Dimensions | 141 x 36 x 22 mm (LxWxH) | | Weight, net (gross) | Approx. 170 g (approx. 500 g) |
Photo Gallery
Tension Ranges
| Model | PT-100-L | | Range | 0.5 - 100.0 gram or cN | | Measuring Range Speed | 0 - 1999 m/min | | Measuring Range Length | 0 - 1999 m | | Calibration Material | PA: 0.12 mm |
Related Products
PT-100
Circular Knitting Tension Meter - Continuous automatic "zero setting" in all measuring positions insures highest accuracy and repeatability
| |

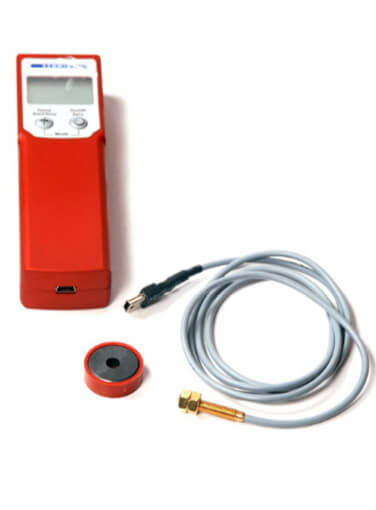

Complete Kit
Tension meter with carrying case, sensor, magnet, AC adapter with 3 country adapters (EU/USA/UK), operating instruction manual
